A Complete Guide to Load Centers for Whole Home Backup and High Demand Homes
A high-demand home with a large home battery needs a plan that matches real-life loads. The load center is where that plan becomes real, because every circuit you want to power and protect runs through it. Portable storage can keep a few plug loads going. Large home storage is built to feed home circuits through permitted, hardwired equipment. Good panel planning keeps outages calmer and future upgrades cleaner.
Do You Need a Load Center Upgrade to Support Whole Home Backup?
It depends. A load center upgrade is needed when your current panel cannot support the circuits, protections, or expansion required for whole-home backup. A full upgrade is usually not needed when the existing panel has enough breaker space, clear circuit labeling, and the right protection devices for the work being added.
Common Upgrade Triggers
These signals often point to a panel upgrade being worth serious attention:
Breaker spaces are already tight, and new loads are coming soon (EV charging, heat pump, induction range)
The circuit labels are vague, so “essential loads” planning stays slow and error-prone
A remodel is adding kitchens, baths, garage circuits, or outdoor circuits that commonly require updated protections
You want a cleaner separation between always-on circuits and optional circuits during outages
Home Storage Planning
Large home storage is built to power real household circuits. It connects through permitted, hardwired equipment and supports typical US residential services that run on 120/240V split-phase. That makes it practical for refrigerators, HVAC controls, pumps, lighting circuits, and selected 240V appliances, depending on system design and load priorities.
Portable Storage Limits
Portable storage works well for short-duration needs and plug loads. It can keep basics running, yet it usually does not manage circuits inside the panel and often cannot cover a home’s larger 240V loads in a seamless way. Some setups can integrate through approved hardware, but the planning still starts with circuit selection at the load center.
What Is a Load Center and How Is It Different From a Panelboard?
A load center is the residential breaker enclosure that distributes incoming power to branch circuits and protects those circuits with breakers. People also call it a breaker panel, service panel, main panel, or circuit breaker box. When you see the phrase load center panel, it usually refers to that same residential panel.
Load Center vs Panelboard
Panelboard is the broader category term used in standards language and commercial work. In residential buying language, “load center” commonly refers to smaller panelboards intended for homes. The practical difference in many comparisons comes down to typical hardware and use cases. Panelboards can be deeper and may support bolt-on and plug-in breakers, while residential load centers are commonly associated with plug-in breakers. For whole home backup planning, focus on fit and approvals: breaker compatibility, required protection devices, and enough circuit capacity for electrification and backup priorities.
How a Load Center Panel Is Built and What Each Part Does
A load center panel has a small set of parts that show up on every install, and each one affects safety, serviceability, and how cleanly a backup plan can be implemented. Understanding these basics helps you review proposals and avoid mismatched parts during an upgrade.
Enclosure and Cover
The enclosure and interior cover protect people from energized parts and keep wiring organized. Placement matters for clearance, moisture exposure, and working access, especially in garages, basements, and exterior wall installs.
Bus and Breakers
Bus bars distribute power to branch breakers. Breakers connect to the bus using a defined interface, which is why breaker compatibility matters. This is also where a “like-for-like” swap can fail if the breaker type does not match the panel listing.
Neutral and Ground
Neutrals carry return current in normal operation. Grounds provide a fault path for safety. In many subpanel designs, neutrals and grounds must be kept separate, while the main service equipment bonds neutral and ground per code and design. This detail often becomes important when essential circuits move to a downstream panel for backup control.
Main Disconnect Options
Some panels include a main breaker disconnect. Others use main lugs with upstream protection. Either approach can be valid in residential design; the best choice depends on service architecture, utility meter equipment, and how the backup system is interconnected.
What kind of product or solution are you interested in?
Which Electrical Ratings Should You Check Before Choosing an Electrical Load Center?
Before choosing an electrical load center, confirm the ratings that control heat, fault safety, and how many circuits you can support. These numbers decide whether the panel can carry your present loads, accept your planned electrification circuits, and pass inspection.
Service and Voltage
Confirm the service type and nominal voltage your home uses, then make sure the panel design and backup equipment align with it. Most US homes use 120/240V split-phase service. This matters for 240V appliances and for how circuits are balanced across legs.
Ampacity and Spaces
Panel and feeder ampacity should match the service design and your planned load additions. Circuit count and physical breaker spaces matter just as much as amperage in high-demand homes, since new electrification often adds several dedicated circuits.
Fault Ratings
Fault performance is safety-critical. Confirm that the panel and breakers have appropriate short-circuit and interrupting ratings for the available fault current at your service. Applications vary by typical voltage and context, so the equipment needs to match the job.
Protection Devices
Many modern circuits require arc-fault and ground-fault protection depending on location and use. Requirements vary by jurisdiction based on the NEC edition adopted and local amendments, so your electrician should verify the current local rules.
Here is a compact way to review the essentials with your installer:
Item to Confirm | Why It Matters |
|---|---|
Service type and voltage | Aligns backup equipment with the home’s electrical system |
Panel ampacity and feeder plan | Supports large loads and reduces overheating risk |
Breaker spaces and circuit count | Leaves room for future electrification circuits |
Short-circuit and interrupt ratings | Supports safe fault clearing and inspection |
Required AFCI and GFCI protections | Meets local code expectations for new circuits |
Enclosure location and environment | Supports indoor or outdoor placement and durability |
How to Map Circuits for Large Loads and Essential Backup
Circuit planning is where whole-home backup becomes comfortable. A load center plan should separate essential circuits from flexible circuits so your home stays stable while the system protects itself.
Circuit Grouping
Use a clean three-group structure that avoids overlap:
Protection Loads: sump pump, well pump, medical equipment, critical lighting paths
Continuity Loads: refrigeration, internet, key outlets, HVAC controls
Flexible Loads: EV charging, pool equipment, electric water heating, workshop circuits
This grouping makes outage priorities clear and supports better everyday energy management for time-of-use pricing.
Large Load Strategy
Motor loads and compressors can draw high startup current. HVAC, well pumps, and some shop tools often fall into that category. Good planning combines realistic circuit grouping with a backup design that can handle starts without constant tripping. Large home storage usually targets this goal through proper sizing and permitted interconnection. Portable storage is usually better suited to smaller plug loads.
Labeling and Testing

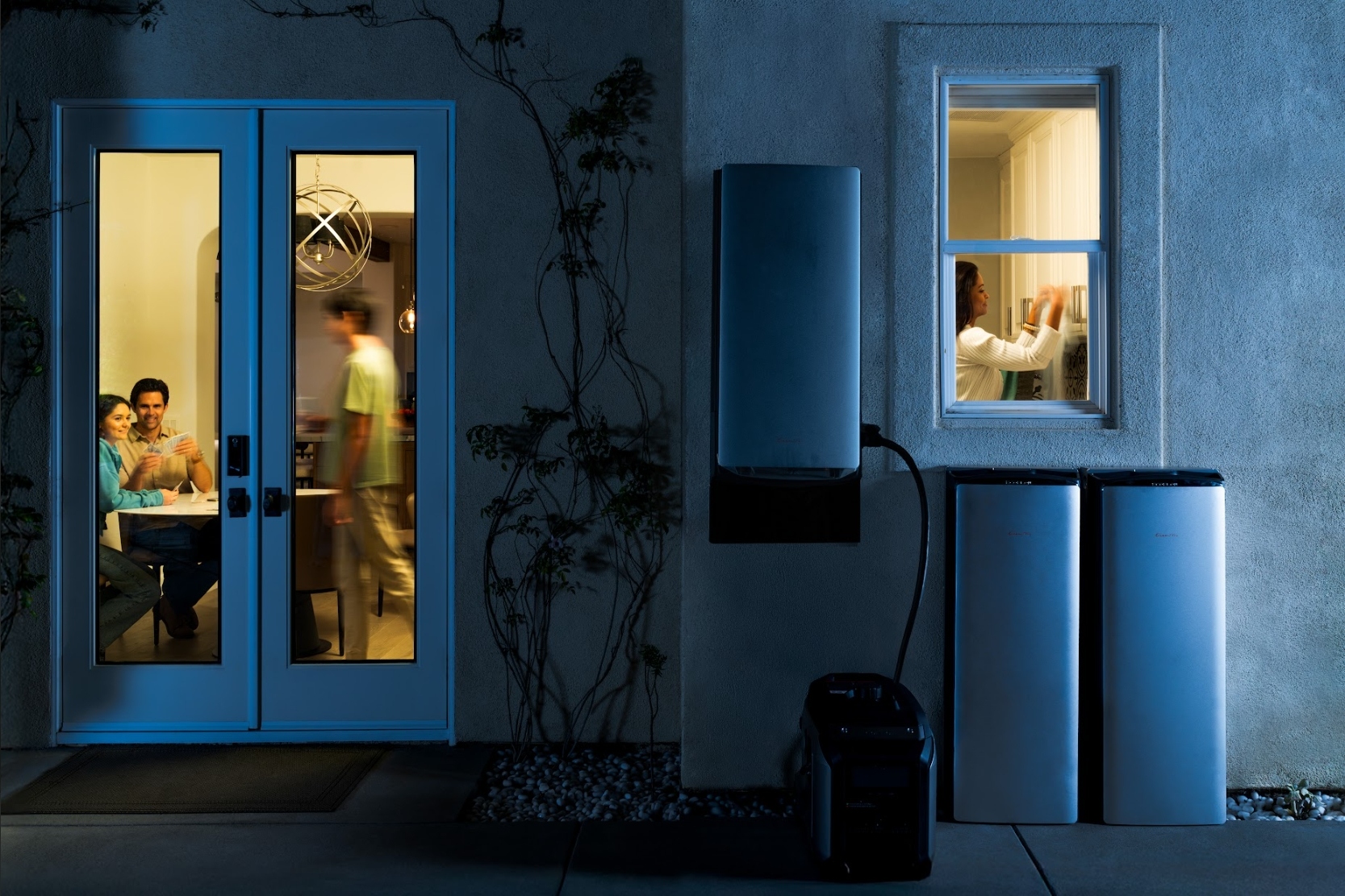

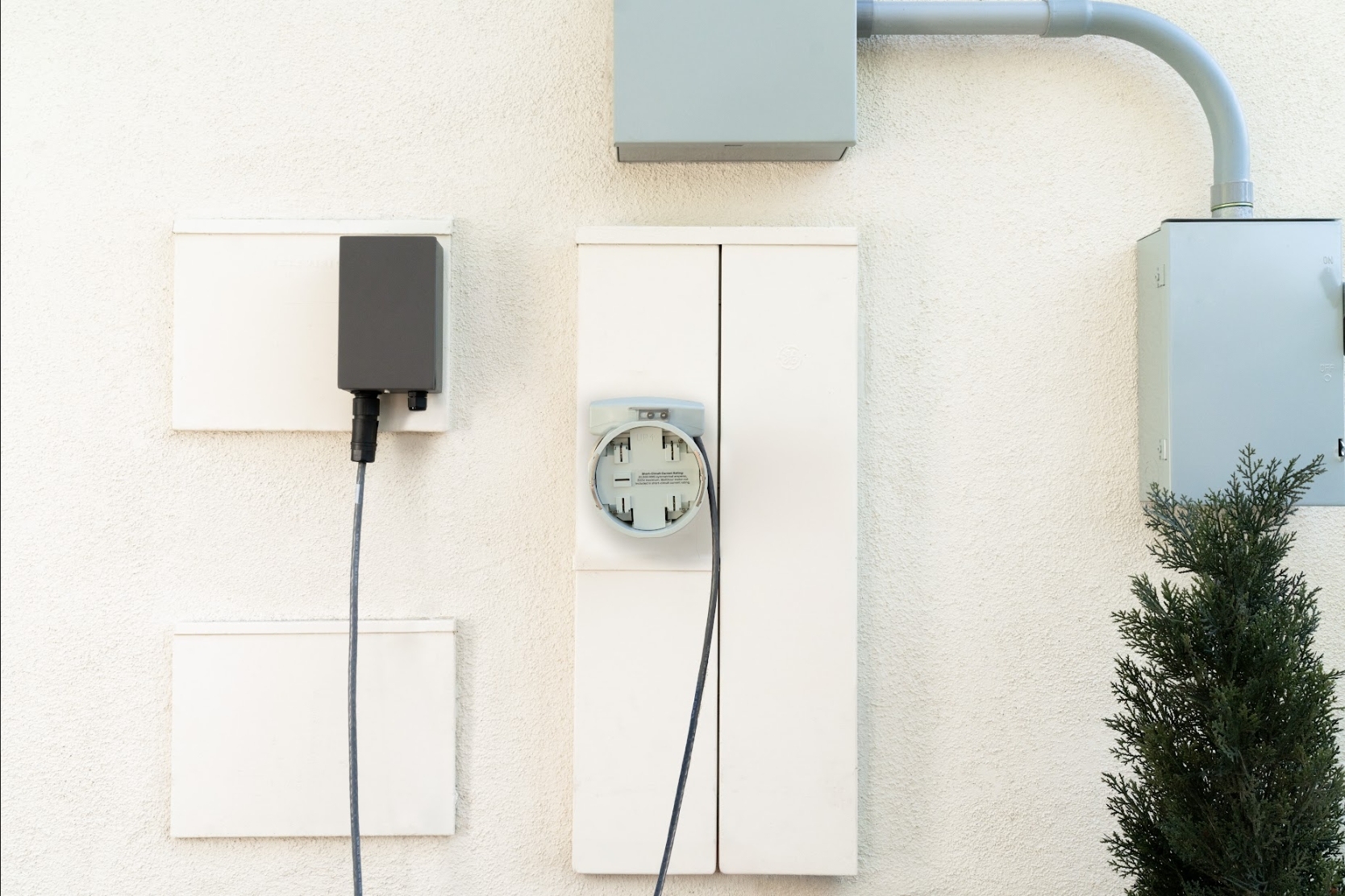

Accurate labels reduce mistakes during storms and speed troubleshooting. Replace vague labels with consistent names that include area and function, then do a controlled outage test with your installer after the work passes inspection. For circuit-level visibility and smoother backup operation, some whole-home setups pair a smart electrical panel with a dedicated home battery system, such as EcoFlow OCEAN Smart Electrical Panel 40 with EcoFlow OCEAN Pro.
Make Your Load Center Upgrade Backup Ready
Backup-ready results come from clear circuit priorities, code-compliant protection, correct neutral and ground handling, and room for future electrification. Bring a load list to a licensed electrician, confirm which circuits stay on during outages, and align the panel work with the storage interconnection plan for smooth inspection and reliable backup. If you want circuit-level visibility and coordinated control, ask about the EcoFlow OCEAN Smart Electrical Panel 40 with the EcoFlow OCEAN Pro. Learn more
FAQs
Q1: What Is the Difference Between a Load Center and a Sub Panel?
A load center is a type of residential breaker panel. A subpanel is any panel that is fed from another panel, often used to add circuits for a garage, addition, or backup loads. The subpanel is supplied by a feeder breaker in the main panel. In a typical subpanel, neutrals and grounds stay separated (neutrals isolated, grounds bonded).
Q2: What’s the Difference Between a Load Center and a Panel Board?
A panelboard is the broader category name. In everyday residential language, a load center usually means a smaller panelboard intended for homes. In many product lines, panelboards can be deeper and may support bolt-on breakers as well as plug-in types, while residential load centers are commonly plug-in. Panelboards also show up more in higher-demand commercial distribution.
Q3: What Is the 80% Rule for Breakers?
It applies to continuous loads, typically loads expected to run 3 hours or more. Standard breakers are commonly sized so the continuous load uses no more than 80% of the breaker rating. Example: a 20A breaker supports about 16A continuous. The common sizing method is to take the continuous load and size the circuit at 125% of that load.
Q4: Can I Put a 150 Amp Main Breaker in a 200 Amp Panel?
Yes, if the breaker is listed/compatible for that panel and the installation follows the panel labeling and local code. A 200A-rated panel can be protected by a smaller main breaker, which simply limits the available current to 150A. The service conductors, meter equipment, and any disconnect requirements still must match the final service rating.
Q5: How Many Breakers Can You Put in a 200-amp Panel?
It depends on the panel’s listed spaces and maximum circuits, not on “200A” by itself. Check the panel label for “X spaces / Y circuits” (for example, 20 spaces / 40 circuits). If tandem breakers are allowed, they can only go in the positions approved by the panel’s directory. Never exceed the panel’s stated maximum circuit count.
