Charge your EV using solar energy with the EcoFlow OCEAN EV Charger (11.5kW). It optimally uses stored solar and grid energy, helping you charge more efficiently and often at lower cost[1]—without the guesswork.
EcoFlow OCEAN EV Charger
- Product
- FAQ
- Specs

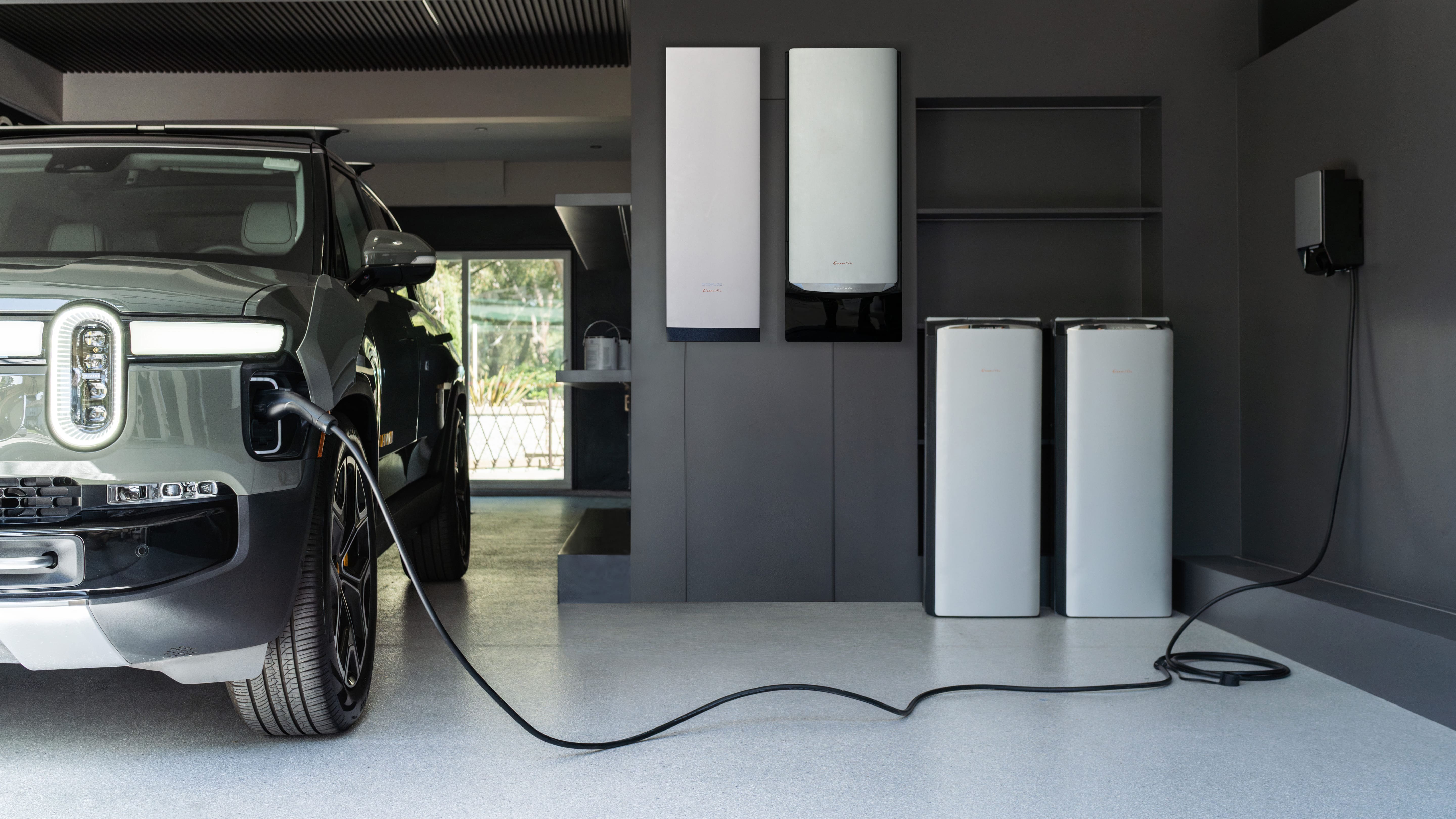

Solar-Powered Savings with OCEAN Pro
Maximize your solar investment with OCEAN Pro. Store surplus solar energy during the day and use it to charge your EV at night, slashing your charging costs[1]. With EcoFlow’s integrated solar battery, you can pay less while you sleep and wake up to a fully charged EV—ready for your morning commute. Smart, seamless, and cost-effective[1] charging every day.
Smarter Charging, Effortless Savings
Just set your charging goal or departure time, and EcoFlow Assistant will help you with the rest[2]. The system combines dynamic electricity pricing, solar storage, and optimized scheduling to help lower charging cost. No manual settings or guesswork—just smarter charging that adapts to your needs and grows with your EV, making every charge both affordable and effortless.
11.5kW Fast Charging, Always Ready to Roll
With a robust 11.5kW, 48A output, you can add up to 46 miles[3] of driving range per hour, according to EcoFlow’s laboratory testing. The SAE J1772 connector makes it compatible with most EVs[4]. Note: The OCEAN EV Charger (11.5kW) is designed exclusively for use with EcoFlow OCEAN Pro.
Sleek LCD Display, Real-Time Status at a Glance
Instantly check the charging speed, status, and connectivity on a clear and intuitive LCD display.
Stay Connected, Charge with Confidence
Stay in control wherever you are. With Wi-Fi, Bluetooth, RS485, and CAN communication, you can monitor and manage your EV charger remotely. Even without internet, local Bluetooth offers reliable access—so you're ready to charge at home or on the go.
Reliable, Durable, And Built for Any Environment
25 ft charging cable
5-year warranty
Energy Star Certification
T&C
Charging performance, compatibility, and savings may vary depending on vehicle model, grid conditions, network connection, and user behavior.
Remote features require Wi-Fi access and the EcoFlow App.
Smart recommendations do not imply full automation and depend on user-defined settings.
All performance metrics are based on EcoFlow internal testing under ideal conditions unless otherwise noted.
[1] Cost reductions depend on local energy tariffs, charging schedules, and user behavior. Actual savings may vary.
[2] Smart recommendations are generated based on user input and real-time energy data. Final charging behavior depends on user-defined settings and system conditions.
[3] Performance data is based on EcoFlow lab testing using a Tesla Model 3 under standard conditions. Actual charging performance may vary depending on vehicle model, battery status, and environmental conditions.
[4] To confirm compatibility with your specific EV model, please contact EcoFlow customer support.
Input & Output
Charge Power (configurable)
11.5 kW
Output Cable/Cable Length
Pre-wired with SAE J1772/7.5m
Input Cable Length
1m
Input Cable Type
Pre-wired with:(L1,L2,Gnd)
Residual Current Circuit Breaker (RCCB)
External overcurrent protection device required
Rated Frequency
60 Hz
Rated Current (configurable)
48 A
Rated Voltage
208 /240 VAC; L1,L2 (180° or 120°)
Communication
Protocol
OCPP1.6-J
Working Mode
Fast Charge, Scheduled Charge, Customized Charge, Smart Charge
Control & Monitoring
EcoFlow App, LCD Display
Authentication
EcoFlow App, Bluetooth
Communication
Wi-Fi (2.4G) , Bluetooth, RS485, CAN
Environment requirement
Altitude
≤ 2000 m
Relative Humidity
5% to 95%
Ambient Temperature for Operation
-30ºC to 50ºC
Ambient Temperature for Storage
-40ºC to 70ºC
IK Protection Rating
IK 10
Enclosure Rating
NEMA Type 4
Usage Environment
Indoor and outdoor
Basic information
Compliance Standard
UL2594, UL2251, UL2231-1, UL2231-2, UL1998, UL991, ENERGY STAR
Protection
AC overvoltage protection, AC undervoltage protection, output overcurrent protection, AC overfrequency protection, AC underfrequency protection, short circuit protection, overtemperature protection, leakage protection, surge protection, relay contact adhesion protection, grounding protection
Installation
Wall mounted
Dimensions
335 x 226 x 141 mm
Net Weight
Approximately 6.5 kg
Input & Output
Charge Power (configurable)
11.5 kW
Output Cable/Cable Length
Pre-wired with SAE J1772/7.5m
Input Cable Length
1m
Input Cable Type
Pre-wired with:(L1,L2,Gnd)
Residual Current Circuit Breaker (RCCB)
External overcurrent protection device required
Rated Frequency
60 Hz
Rated Current (configurable)
48 A
Rated Voltage
208 /240 VAC; L1,L2 (180° or 120°)
Communication
Protocol
OCPP1.6-J
Working Mode
Fast Charge, Scheduled Charge, Customized Charge, Smart Charge
Control & Monitoring
EcoFlow App, LCD Display
Authentication
EcoFlow App, Bluetooth
Communication
Wi-Fi (2.4G) , Bluetooth, RS485, CAN
Environment requirement
Altitude
≤ 2000 m
Relative Humidity
5% to 95%
Ambient Temperature for Operation
-30ºC to 50ºC
Ambient Temperature for Storage
-40ºC to 70ºC
IK Protection Rating
IK 10
Enclosure Rating
NEMA Type 4
Usage Environment
Indoor and outdoor
Basic information
Compliance Standard
UL2594, UL2251, UL2231-1, UL2231-2, UL1998, UL991, ENERGY STAR
Protection
AC overvoltage protection, AC undervoltage protection, output overcurrent protection, AC overfrequency protection, AC underfrequency protection, short circuit protection, overtemperature protection, leakage protection, surge protection, relay contact adhesion protection, grounding protection
Installation
Wall mounted
Dimensions
335 x 226 x 141 mm
Net Weight
Approximately 6.5 kg
