Why Split Phase Inverters Are Essential for US Homes
Achieving true energy independence in the US requires more than just a battery; it requires the right voltage architecture. Standard 120V inverters are sufficient for lights and small electronics, but they cannot run the heavy appliances that define modern living—such as central air conditioning, electric dryers, and well pumps. These essential devices require 240V power, which is delivered via a "split phase" system. To replicate grid power during an outage, homeowners need a split phase inverter. While the market has traditionally relied on a 48v split phase inverter, new high-voltage technologies are emerging as the superior choice for efficiency and reliability.
What is a Split Phase Inverter?
To understand why this specific hardware is non-negotiable for a whole-home system, we first need to answer the big question: What is a split phase inverter?
Think of it as the translator for your home's unique power language. While most of the world runs on a straightforward single-phase 230V standard, North American homes are wired differently. We use a "split-phase" system—a clever balancing act designed to give us the best of both worlds: safer, lower voltage for small devices and high voltage for the heavy lifters.
A standard inverter typically outputs a single stream of power (usually 120V). That's fine for a campsite, but a split phase inverter is a different beast. It manages two distinct 120V lines, often called "legs" (Line 1 and Line 2). The secret sauce is that these legs are 180 degrees out of sync with each other. When one wave zigs, the other zags. That specific rhythm is what allows a modern American home to run completely off-grid.
How It Powers Your Home
The real beauty of this system is its versatility. By working with a neutral wire and two hot wires, the inverter acts as the central nervous system of your electrical panel, handling two very different jobs at the same time:
120V Loads (Everyday Power): When the system connects just one hot leg (either L1 or L2) to the neutral wire, you get standard wall outlet power. This is the juice you trust to run your laptop, TV, microwave, and living room lamps. It's lower voltage, making it much safer for daily interaction.
240V Loads (The Heavy Lifting): When you connect both L1 and L2 together, you ignore the neutral wire entirely. Because those waves are 180 degrees apart, their energy combines to create 240V. This is the raw power required to run things like central AC, electric dryers, and well pumps without a grid connection.
If you skip this architecture, a battery-backup for home is little more than a massive power bank—great for keeping your phone charged, but useless for keeping your house warm in winter or getting water from a deep well.
What kind of product or solution are you interested in?
How Does a Split Phase Power Inverter Work?
The mechanics of a split phase power inverter rely on precise synchronization. The device must ensure that the frequency of the two 120V outputs works in perfect harmony. If the waves are not exactly 180 degrees opposed, they will not sum up to 240V correctly, potentially damaging sensitive electronics or motors.
The Mechanism of Synchronization
When your home is connected to the grid, the utility company acts as the conductor, setting the steady 60Hz "heartbeat" of your power from the plant. But the moment you switch to battery backup, your inverter has to step up and become the "grid forming" leader. It takes on the responsibility of keeping that rhythm perfectly steady across both electrical legs.
Back in the day, off-grid setups were a bit of a science project. You usually had to "stack" two separate 120V inverters, wiring them together with a communication cable so they wouldn't drift out of sync. Or, you'd be stuck lugging around a massive autotransformer just to split a 240V signal back down to 120V. It worked, sure, but it was heavy, complicated, and gave you more potential points of failure.
The "Inverter Split Phase" Necessity
Modern units are smarter. They handle this synchronization internally. Without this specific inverter split phase capability, your backup is weak. You might have a full battery. But that doesn't mean you can run your home. Essential devices might just sit there. During a long blackout, that's a problem.
Consider your central AC. The compressor outside usually needs 240V. The fan inside often needs just 120V. A basic 240V inverter fails here; it lacks the neutral wire to run the fan. A simple 120V inverter fails too; it can't power the compressor. Only a true split phase system handles both at once. It keeps your climate control running exactly like the grid was never lost.
Comparing Voltages: 24V vs. 48V Split Phase Inverter
When planning a home solar electric system, voltage matters immensely. The input voltage of the battery bank dictates the efficiency, wire size, and overall capability of the system. This is often where homeowners get confused between entry-level setups and professional-grade resilience.
The Entry Level: 24V Split Phase Inverter
If you spend time around the RV community or food truck builders, you've likely seen a 24V split phase inverter (often labeled as a split phase inverter 24V) in action. These units are fantastic for mobile living or small cabins where the distance between the battery and the appliances is short.
However, trying to run a stationary home on 24V is an uphill battle against physics. It's a classic seesaw effect: when you drop the voltage, the current (amperage) has to skyrocket to deliver the same amount of power. Pushing that much current generates a lot of waste heat. To keep things safe and prevent your wiring from becoming a fire hazard, you would need to install massive, heavy-gauge copper cables—sometimes as thick as your thumb. At that point, the sheer cost and difficulty of wrestling with that much copper make it impractical for most homeowners.
The Standard: 48V Split Phase Inverter
The 48V split phase inverter (or 48 volt split phase inverter) has long been the gold standard for off-grid homes. A split phase inverter 48V system is more efficient than 24V and uses thinner wires. By doubling the voltage from 24V to 48V, the current is halved for the same power output. This results in cooler operation and less energy wasted as heat in the wiring.
However, even 48V systems are becoming outdated compared to modern high-voltage (HV) architectures that offer commercial-grade efficiency. Traditional 48V systems rely on heavy transformers to step up the voltage to 120V/240V. This conversion process incurs losses, meaning less of your stored solar energy actually makes it to your appliances.
The Role of a Split Phase Solar Inverter in Off-Grid Systems
For those looking to generate their own power rather than just store it, a split phase solar inverter is the heart of the ecosystem. This device manages the DC energy harvested from solar panels and converts it directly into the 120/240V AC power your home infrastructure understands.
Maximizing Solar Harvest
A high-quality split phase solar inverter does more than just convert power; it optimizes it. Using Maximum Power Point Tracking (MPPT), the inverter adjusts its input to get the most energy possible from your solar panels, even as the sun moves across the sky or clouds pass overhead.
In older systems, if one panel was shaded, the output of the entire string would drop. Modern systems use multiple MPPT channels to isolate these issues. For example, if your east-facing roof is shaded in the afternoon, the west-facing panels can still operate at full capacity, ensuring your batteries charge fully before sunset.
Grid-Tie vs. Backup
A surprising number of homeowners don't realize that standard solar panels actually go completely dead during a blackout. It's a required safety feature so the system doesn't accidentally zap the utility crews working to fix the lines.
But if you're aiming for genuine peace of mind, you need hardware capable of instantly building its own "micro-grid." Your setup has to be smart enough to keep delivering that vital split phase output even when the rest of the neighborhood is totally dark.
In the industry, we refer to this as "islanding." It essentially cuts the invisible cord to the utility company, letting your house operate in its own self-sustaining bubble for days or even weeks. As long as you get enough sunshine to top off your batteries during the day, your family's routine just keeps humming along without missing a beat. Frankly, having hardware that can pull this off is probably the most crucial box to check on any serious power outage emergency supply kit checklist.
Why High-Voltage Hybrid Inverters Are the Future
The energy industry is shifting away from the limitations of the traditional 48 volt split phase inverter. The future lies in high-voltage hybrid systems that offer commercial-grade efficiency for residential applications.
EcoFlow OCEAN Pro
Moving Beyond 48V: While a 48 volt split phase inverter is reliable, it involves significant DC-to-AC conversion losses. The industry is shifting toward high-voltage (approx. 400V) systems. By operating the internal battery bus at a higher voltage, the inverter doesn't have to work as hard to step up the power to 240V. This results in superior efficiency, meaning less of your stored solar energy is lost as heat.
The OCEAN Pro is not just a battery; it is a comprehensive energy ecosystem designed to replace the patchwork of components found in traditional setups.
Unlimited Power: With 24kW continuous output, you can run a modern household without compromise.
Surge Capability: Its massive 205A LRA (Locked Rotor Amps) rating can start two 5-ton central air conditioning units simultaneously—a feat most 48V systems simply cannot achieve.
Scalable & Future-Proof: The modular architecture grows with you, scaling from 10kWh up to 80kWh. It also features a robust 40kW solar input with 8 MPPTs, ensuring maximum harvest from complex roof angles and providing plenty of headroom to charge an EV.
Reliability: Engineered for extremes, it operates from -4°F to 140°F and is backed by a 15-year warranty on key components.

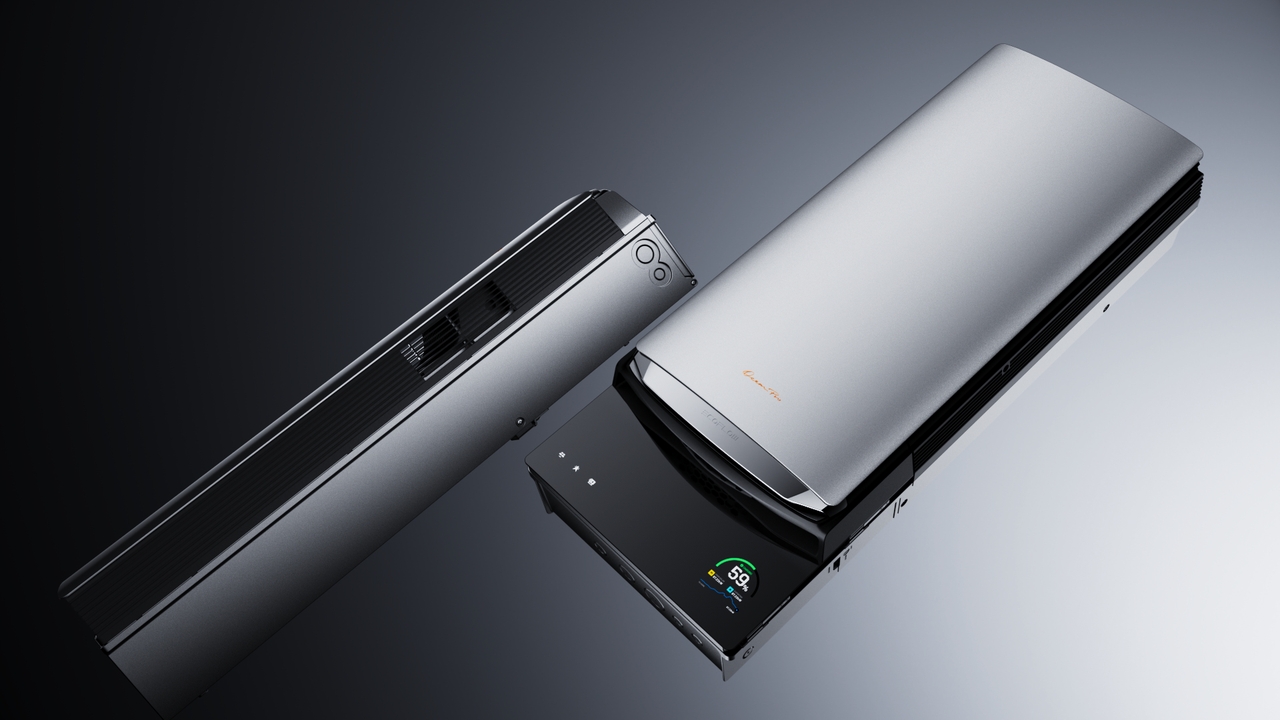

Intelligent Control: To fully maximize a split phase inverter system, integration is key. The OCEAN Pro pairs seamlessly with the Smart Electrical Panel 40. Unlike a standard manual transfer switch, this smart panel intelligently manages your 120V and 240V circuits, allowing you to prioritize essential loads automatically and view consumption data in real-time, ensuring your split phase power goes exactly where it is needed most.
Conclusion
The era of struggling with complex split phase inverter wiring and underpowered 24V split phase inverter setups is ending. As our dependence on electricity grows, so does the need for powerful, high-voltage solutions that can handle the reality of modern 240V appliances.
The EcoFlow OCEAN Pro represents the pinnacle of this evolution. By offering native split phase output, massive surge capacity for HVAC systems, and a 15-year warranty, it provides a level of security that standard batteries cannot. Whether you are looking to secure your home against outages or achieve total energy independence, choosing the right architecture is the first step.
Ready to upgrade your home energy ecosystem? Request a consultation today to see how the OCEAN Pro can power your future.
FAQ
1. What is the difference between a single phase and split phase inverter?
A single phase inverter typically outputs 120V only. A split phase inverter outputs two 120V legs to create 240V, which is required for heavy US appliances like dryers, ovens, and central AC units.
2. Do I need a split phase solar inverter for my RV?
Usually, no. Most RVs run on 120V. However, massive luxury RVs (50 Amp service) utilize split phase power. In those specific cases, a split phase solar inverter is necessary to power all onboard systems simultaneously
3. Is a 48V inverter better than a 24V inverter?
Generally, yes. A split phase inverter 48V system is more efficient than a 24V split phase inverter because it uses lower amperage for the same power, resulting in less heat and allowing for thinner, less expensive wiring.
4. What are the advantages of split phase?
Split phase allows a single electrical system to power both standard 120V outlets (lights, TV) and high-power 240V appliances (HVAC, pumps). It is the standard for North American residential infrastructure.
5. How does the OCEAN Pro handle extreme temperatures?
The OCEAN Pro is built for climate resilience, operating effectively from -4°F to 140°F (-20°C to 60°C). This makes it superior to many standard batteries that shut down in freezing conditions or extreme heat.
