Mastering Your Home Energy with Intelligent Power Control Systems
In the modern energy landscape, hardware alone isn't enough; you need intelligent power system controllers. A Power Control System (NEC 705.13) acts as the central brain of a home's energy infrastructure. Traditionally, adding energy storage was limited by the home's main service panel rating, often forcing homeowners into expensive utility service upgrades. The OCEAN Smart Electrical Panel 40 changes this dynamic. By replacing your standard "dumb" breaker box, this smart panel bridges the gap between power systems and controls. It intelligently manages the flow of electricity from sources like the EcoFlow OCEAN Pro, allowing for high-power storage integration while keeping your electrical service within safe, compliant limits.
What are Power Control Systems?
Put simply, a Power Control System is like a digital traffic cop for your house. Under National Fire Protection Association (NFPA) guidelines, a Power Control System is defined as technology that electronically manages current to keep it safely within your equipment's ratings.
Defining the Tech
A power control system is a setup that actively regulates output from things like solar inverters and batteries. Its job is to ensure they never exceed what your main panel or utility service can handle. A standard breaker is passive—it just sits there and "trips" (cuts power) if things get too hot. A PCS is active. It watches the current in real-time and steps in before you hit a limit.
The "Virtual" Breaker
You can think of control and power systems with PCS tech as having "virtual breakers." They use sensors (usually Current Transformers) to monitor the flow constantly. If the busbar is getting close to maxing out, the system automatically dials back the solar or battery power.
Picture this: You're charging your EV, and suddenly the dryer, oven, and A/C all kick on. With a dumb panel, you'd trip the main breaker and go dark. With a PCS-enabled setup like EcoFlow's, the system sees that spike coming. In a split second, it tells the EV charger to pause or slows down the battery discharge, keeping everything just under the red line. You probably wouldn't even notice—the lights stay on, and life continues.
NEC 705.13 Compliance
Here's the regulatory magic: A certified PCS allows you to "oversubscribe" your main panel. That means you can hook up more solar and battery power than your panel is physically rated for, simply because the PCS guarantees you'll never actually breach that limit.
The Financial Game-Changer: Avoiding Main Panel Upgrades

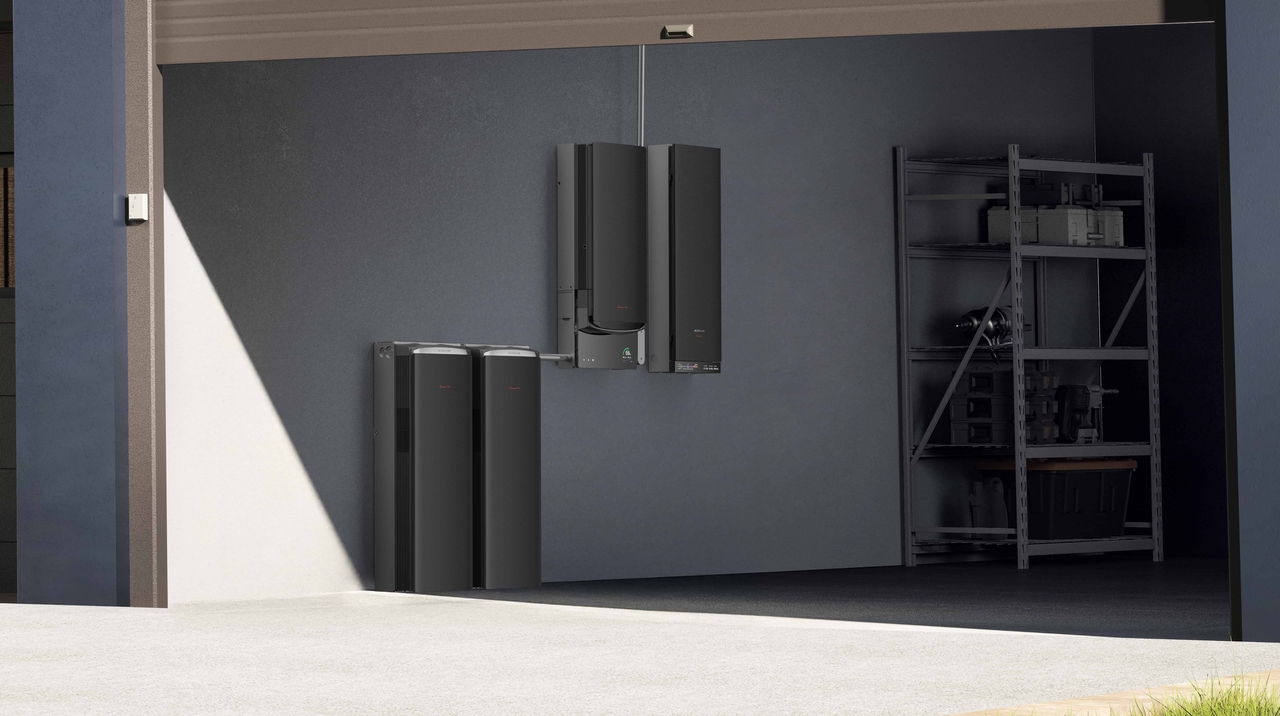

EcoFlow OCEAN Smart Electrical Panel 40
Solving the Bottleneck
Most older homes in the US run on 100A or 200A service. That was fine in 1990, but modern appliances max it out fast. Traditionally, if you wanted to add a high-capacity home battery, you'd trigger a "Service Upgrade."
That isn't just swapping a gray box on the wall. It often means digging trenches in your yard to lay thicker cables, dealing with weeks of permitting headaches, and spending anywhere from $3,000 to $8,000 depending on your location.
Smart Regulation
Power systems and controls inside the EcoFlow OCEAN Smart Electrical Panel 40 adjust loads on the fly. By tracking total usage, the PCS ensures that even with extra batteries or chargers, your demand stays safe. This intelligent throttling lets you maximize your setup without paying the utility company for more amps. You are basically getting more mileage out of the wires you already have.
Export Limiting
It's not just about what you use; it's about what you send back. These power control systems can limit how much power goes back to the grid. This is huge for complying with local rules, especially in states that cap exports. A PCS ensures you utilize solar power for your home efficiently, prioritizing home loads or charging the battery first. This keeps you compliant while you squeeze every drop of value from your panels.
High-Voltage Storage and Smart Monitoring
To get the most out of a control and power system, you need hardware built for efficiency and visibility.
The High-Voltage Muscle
For real energy independence, high-voltage architecture is the way to go. The EcoFlow OCEAN Pro Solar Battery System uses 400V LFP storage to handle rapid shifts in demand. It uses a proprietary X-BUS architecture with DC coupling, which is about 5% more efficient than standard AC solutions.
Why? Because DC coupling skips the wasteful conversion from DC to AC and back again. It creates a direct path for the energy. This allows the OCEAN Pro to pump out a massive 24kW continuous output. For context, most competitors tap out around 5-7kW. It's the perfect partner for the fast logic of a modern PCS.
The Command Center
You can't control what you can't see. The OCEAN Smart Electrical Panel 40 is the interface for your control & power systems. It features a streamlined 3-in-1 design, combining the Panel, Gateway, and Automatic Transfer Switch (ATS) into one unit.
This gives you a real-time look at where your energy is going. And because the ATS is built right in, the system hits 0ms power switching. If the grid fails, your power stays on without even a flicker. Your digital clocks won't even reset.
Unified Ecosystem
When you pair the OCEAN Pro with the Smart Panel, you get a complete power control system. You can set it to prioritize solar charging, save money during Time-of-Use peak hours, or prep for a storm. It supports 40kW of solar input across 8 MPPTs, meaning it can handle complex roofs with different angles without losing efficiency.
Safety and Standards: UL 3141 and Beyond
When software is controlling high-voltage electricity, safety is the only thing that matters.
Evolving Standards
UL 1741 has covered inverters for years, but the new UL 3141 standard is built specifically for power control systems. It tests the software algorithms to make sure they are just as reliable as physical hardware. It verifies that if a sensor breaks or wifi drops, the system fails-safe.
Reliability in Software
Power system controllers have to be bulletproof to provide reliable battery-backup for home use. The EcoFlow system has built-in AFCI (Arc Fault) and GFCI (Ground Fault) protection, using smart logic to catch dangerous electrical arcs before they start a fire.
Plus, it uses a decoupled architecture. Each battery module charges and discharges independently. If one module needs service, the others keep working. No full system shutdown means zero downtime. This durability is backed by a 15-year warranty on key components.
Scalability and Smart Grid Integration
Don't make the mistake of sizing your system for today and forgetting about tomorrow.
Seamless Expansion
Your life changes. Maybe you get a second EV or build a guest house. With the OCEAN Smart Electrical Panel 40, adding storage is simple. You can scale from 10kWh all the way up to 80kWh. The control and power systems automatically recognize the new capacity without needing a total overhaul. If you need help sizing your system, you can find a solar installer to assist with the layout.
Heavy Load Management
The real test? Starting the A/C. The OCEAN Pro delivers a staggering 205A LRA (Locked Rotor Amps). That is enough juice to start two 5-ton HVAC units at the same time. Most batteries would trip immediately under that load, but this system keeps your house cool and running.
Virtual Power Plant (VPP) Ready
Modern power system controllers connect you to the bigger picture. The precision of the Smart Panel makes your home ready for Virtual Power Plant programs, where utilities actually pay you for access to your stored energy. To do this, you need the exact control over exports that only a NEC 705.13 compliant system offers.
Adaptable Energy Logic
As you add gadgets, the Smart Panel adapts. Unlike a static breaker box, these control & power systems can be updated via software. Plus, with multi-source backup (generators, portable stations, and even V2L EVs), your home stays resilient no matter what the grid is doing.
Conclusion
The days of "dumb" energy are behind us. By installing a power control system, you save on installation costs and get a safer, stronger home. The combo of the EcoFlow OCEAN Pro and OCEAN Smart Electrical Panel 40 puts professional-grade power systems and controls in your hands. With X-BUS architecture, a 15-year warranty, and the power to run heavy appliances, it turns your home into an intelligent energy hub. Request a Consultation today.
What kind of product or solution are you interested in?
FAQ
1. What is the primary function of power control systems under NEC 705.13?
Its main job is to watch all your power sources (grid, solar, batteries) and electronically manage the current. This ensures the total flow never exceeds your equipment's rating, letting you connect more devices than your panel was originally built for.
2. How do power system controllers help avoid main panel upgrades?
They monitor your home's total electrical load constantly. If demand gets close to the limit, the controller automatically lowers the power draw from flexible things (like EV chargers) in milliseconds, so you don't need a physical upgrade.
3. What is an example of an electrical control system?
The OCEAN Smart Electrical Panel 40 is a perfect example. It replaces a standard breaker box with a 3-in-1 unit (Panel + Gateway + ATS) and uses software to automate switching circuits and managing energy from the OCEAN Pro battery.
4. What is a power and control system?
It's an integrated setup that combines hardware (like the OCEAN Pro battery and inverters) with smart software. This lets you automate things like storing solar power efficiently or providing backup power with 0ms switching when the power goes out.
5. How do control & power systems ensure safety during grid outages?
They use an automatic transfer switch (built right into the Smart Panel) to physically cut your home off from the utility grid the second it detects an outage. This "islanding" makes sure your batteries power your home safely without sending dangerous electricity back into the utility lines.
